High-precision small part machining with SIMTEK and Kaestner-Tools!
For more than 25 years, the SIMTEK Group has been the specialist for precision tools for high-precision small part machining.
With around 5,600 standard tools for internal machining starting with a minimum diameter of 0.3 mm up to a minimum diameter of 24.5 mm as well as for external machining with shank dimensions from 10.0 mm x 10.0 mm on, SIMTEK Präzisionswerkzeuge GmbH offers the right tool for almost any application in small part machining, combined with high process reliability, repeatability and performance.

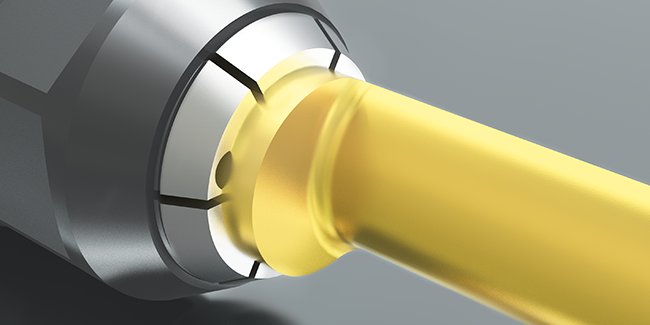

Especially the tool system simturn AX, developed and introduced by SIMTEK in 1998, is designed for maximum performance and stability and allows great performance in smallest bores as of Ø 0.3 mm.
Together with the high-performance precision tools from sister com-pany Kaestner-Tools GmbH, for drilling, countersinking, reaming and milling, an even wider range of cost-effective machining solutions from the SIMTEK Group can be offered.
High-precision small part machining tools!
Pilot-drills from Kaestner-Tools
For optimum preparation of deep hole drilling from 8xD, a guide channel for the deep hole drill should be produced by a pilot hole drilled upstream. Here, a pilot drill of at least the same diameter size is used to pre-drill up to approx. 2xD in order to achieve ideal positioning and guidance of the deep hole drill.
The pilot drills from Kaestner-Tools allow not only the creation of a guide hole necessary for the deep hole drill, but also the creation of a counterbore at the entrance to the hole. This eliminates the need for subsequent countersinking with a special countersinking tool.
Micro precision-drills from Kaestner-Tools
Micro precision-drills made of solid carbide for the production of holes between 0.5 mm and 3.0 mm with hole depths 3xD to 12xD. Available with both external shank cooling via six cooling channels and internal shank cooling via two twisted cooling channels. The standard drill tolerance of m7 enables the production of holes with a hole quality of H9 under normal conditions.
Thanks to the optimal interaction of finest carbide and a coating selection optimally adapted to the ISO material groups, the micro-precision drills from Kaestner-Tools offer highest performance, longevity and process reliability under almost any condition.
High-precision small part machining tools!
Great performance in smallest bores as of Ø 0,3 mm.
Very precise and strong tool system of solid carbide cutting insert and steel toolholders. High repeat accuracy from insert to insert and usable lengths up to 9xD! For best performance in bores as of Ø 0,3 mm.
More than 3.000 standard items provide the right answer for almost every internal turning application.

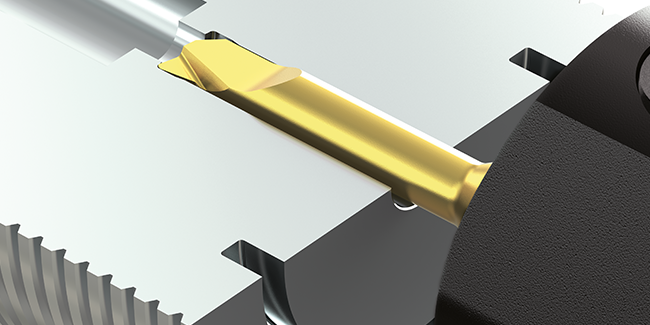

Boring

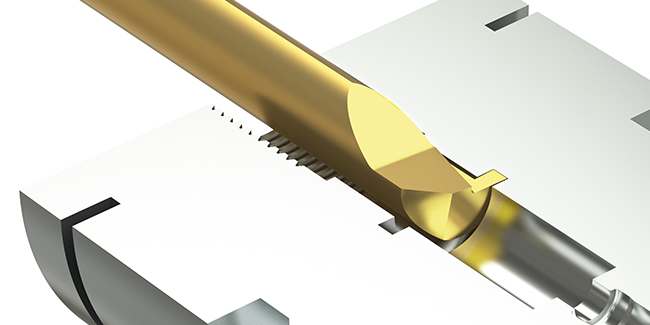

Grooving

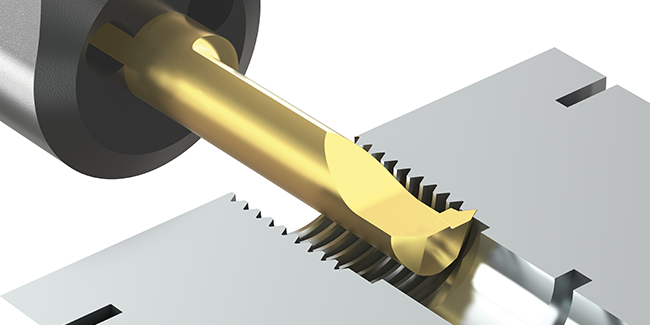

Threading
Great performance in bores as of Ø 7,0 mm. Available in 11 different sizes.
Wide range of carbide cutting inserts, fixed with a screw on the toolholder front side. Anti-vibration carbide and steel toolholders are available for a variety of applications.
Available in 11 different sizes, for best results in bores between Ø 7,0 mm and 22,0 mm. More than 2.000 standard items provide the right answer for almost every internal turning application.
Boring
Grooving
Copying
Grooving and Profiling
Threading

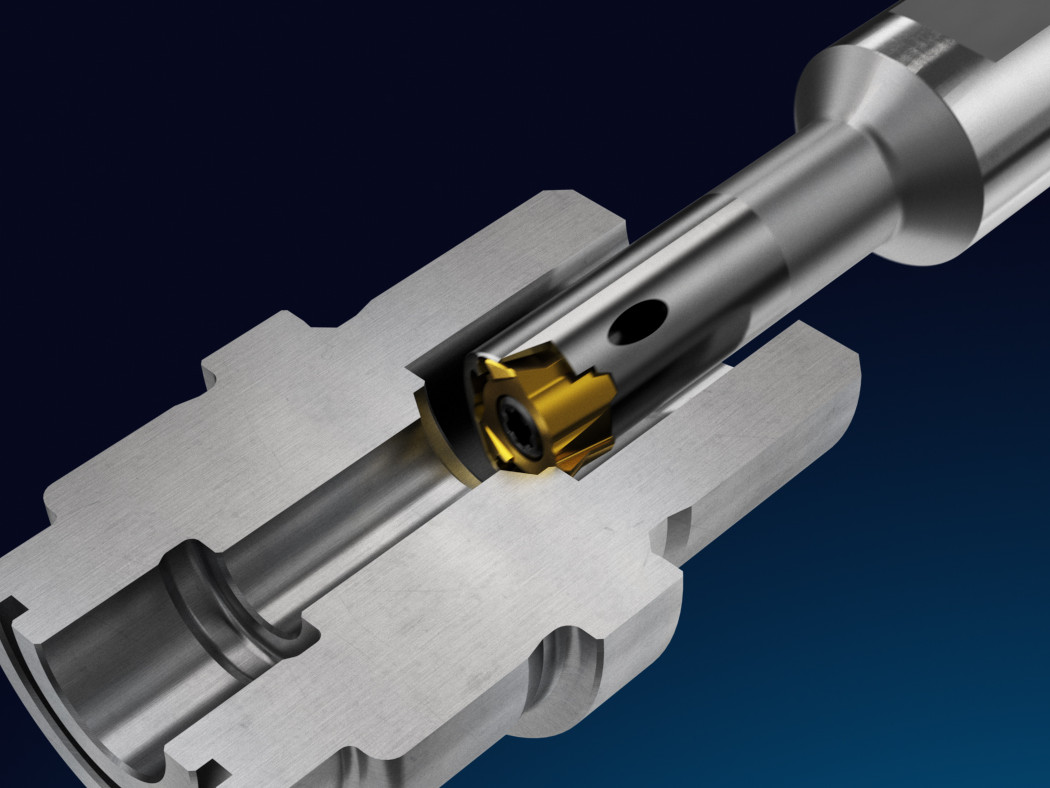

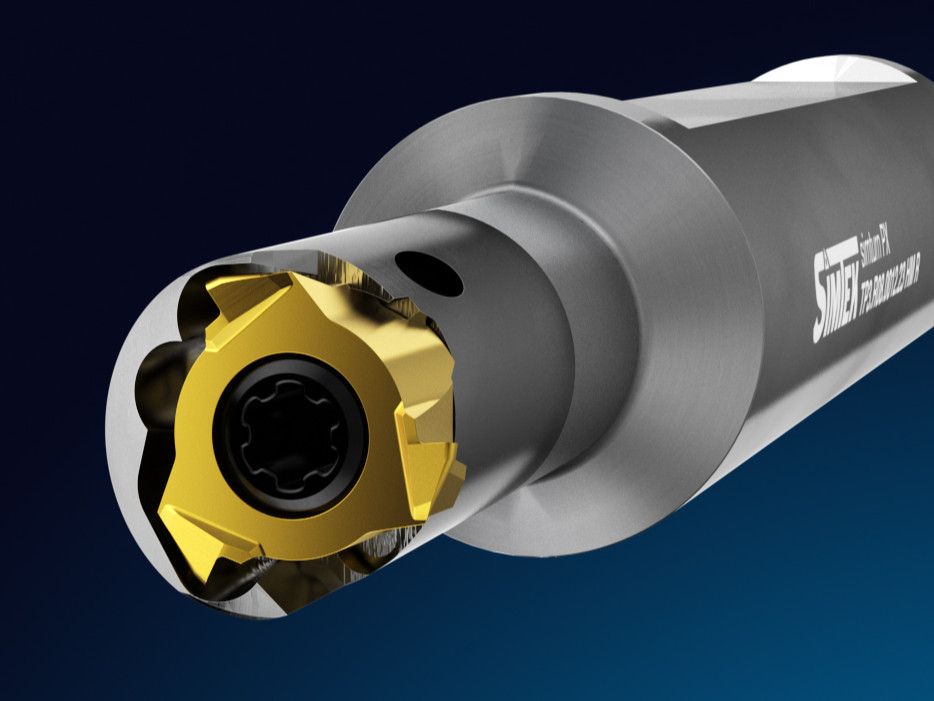

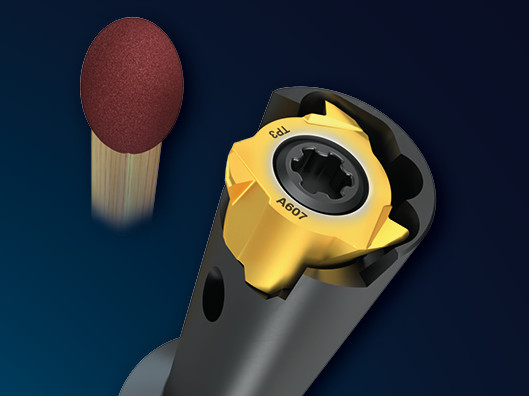

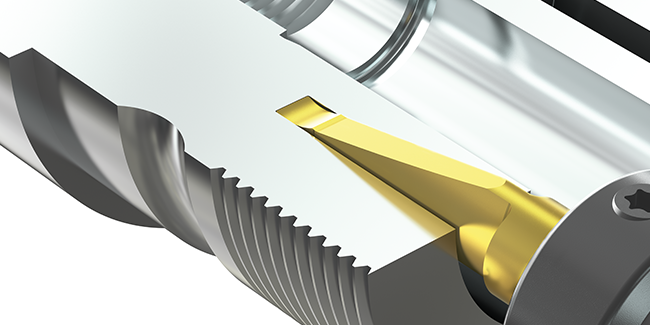

Boring reinvented! Three ground cutting edge for the boring of bores starting at Ø 7,8 mm.

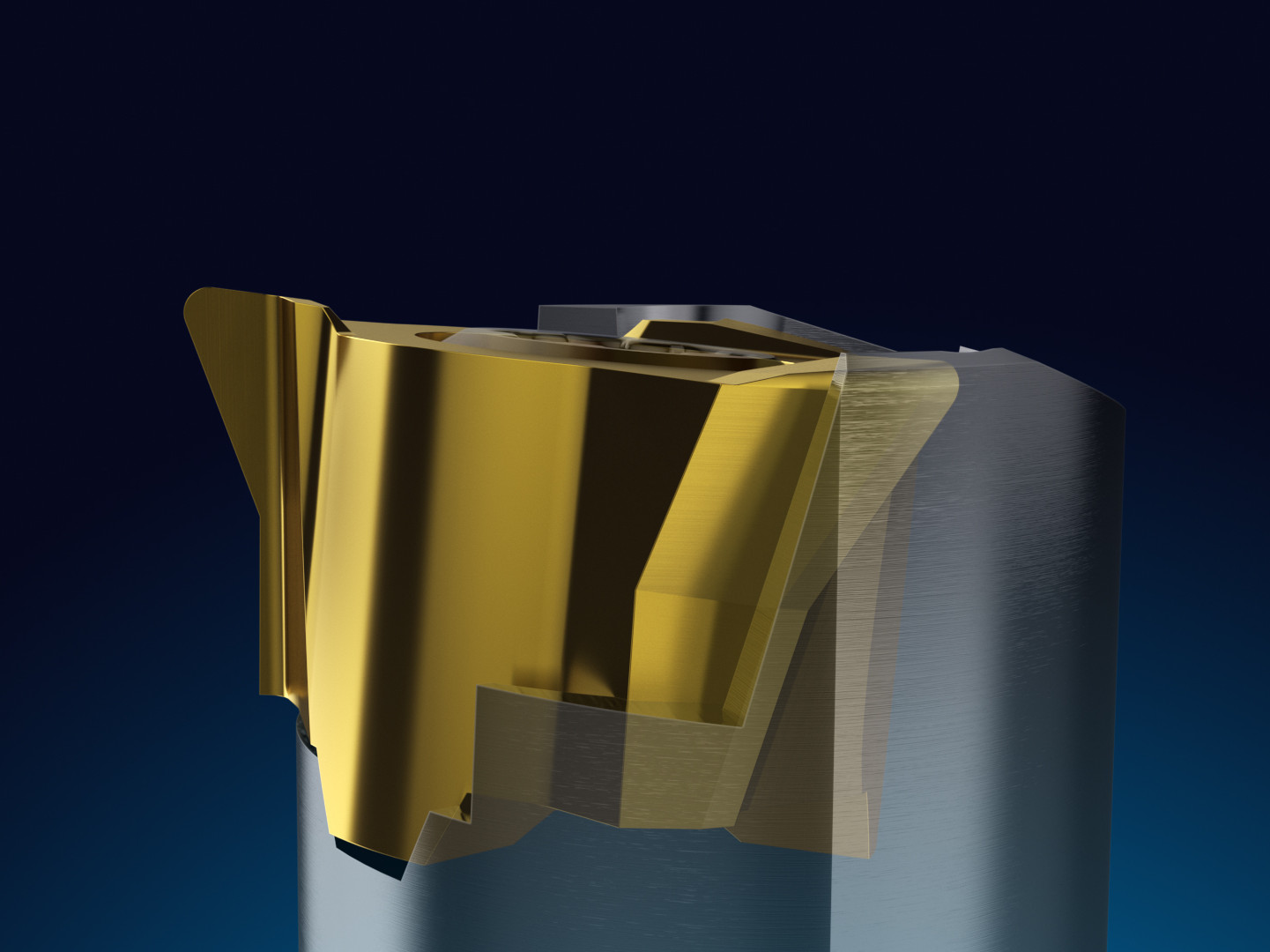

Triple-edged, precision ground indexable cutting inserts with very high repeat accuracy for boring applications star-ting at Ø 7,8 mm - with maximum price/performance ratio! The front-side insert mounting allows a tool change within the machine and thus, together with a self-centering insert seat, offers easy handling and the possibility to consider-ably reduce non-productive times. In addition, a special protective area effectively protects the two passive cutting edges from damages during the machining process.
Tool system of double-edged carbide insert and steel toolholder. For use in bores as of Ø 24,5 mm.
The cutting insert and especially the cutting edge was designed to offer best chip control and improved performance in bores.
The special insert seat design enhances the overall stability and cutting force absorption and leads to improved results.

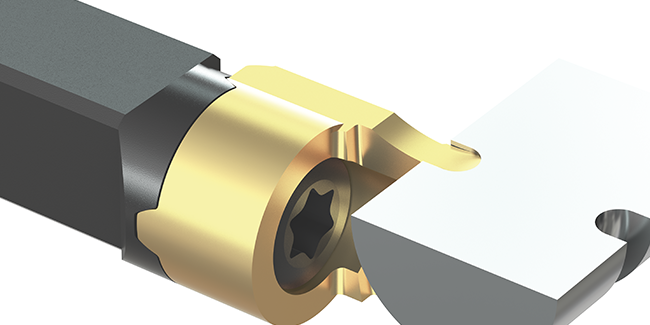

Grooving

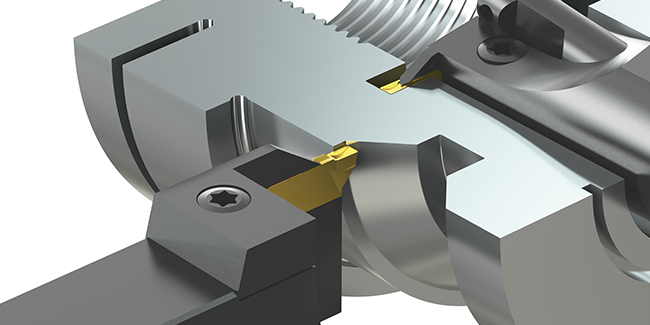

Profiling

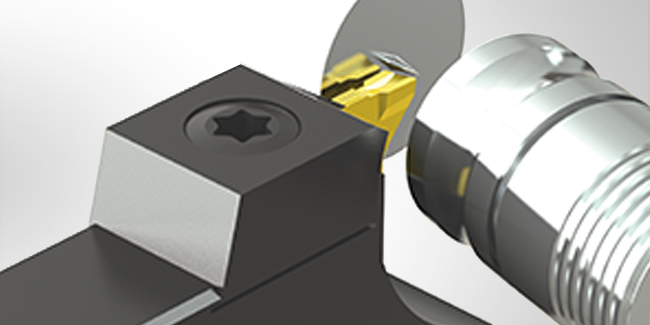

Parting off
The tool system simturn K2 was designed to meet highest expectations in small part machining. The system provides two-edged indexable cutting inserts and square shank sizes from 10x10 mm on. All the major applications are available as standard items providing cutting depths up to 7,0 mm.

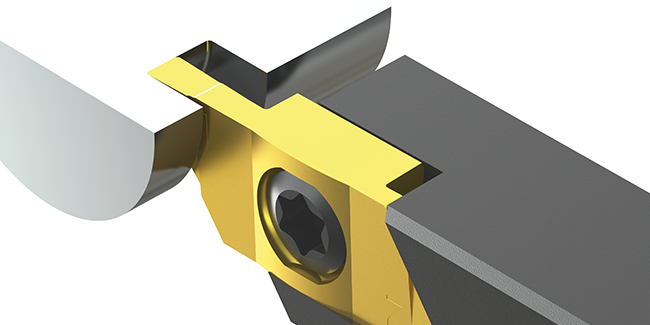

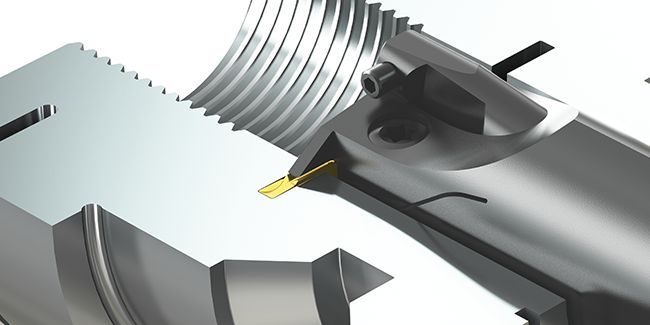

Grooving

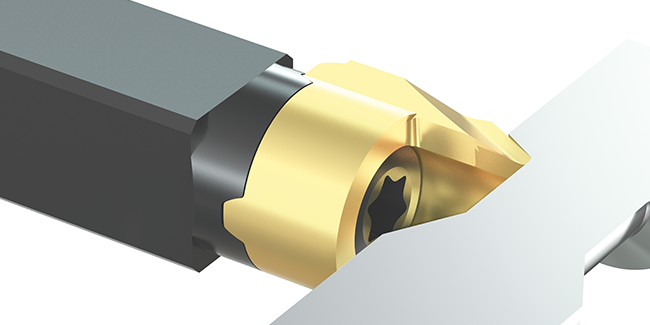

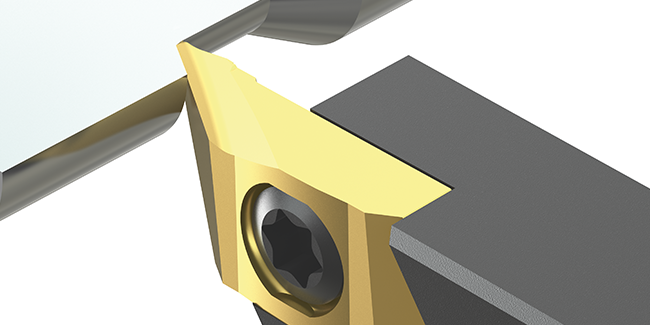

Turning

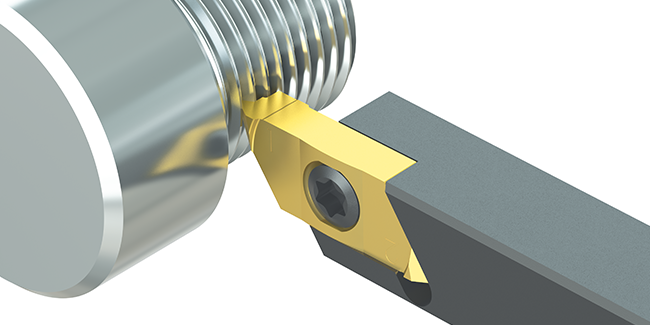

Threading
The tool system simturn K2 was designed to meet highest expectations in small part machining. The system provides two-edged indexable cutting inserts and square shank sizes from 10x10 mm on. All the major applications are available as standard items providing cutting depths up to 7,0 mm.
Grooving
Turning
